| FIFTH
WHEEL HEIGHT |
11300mm. Suitable for 4x2 truck |
| BODY |
Cylindrical |
| KING PIN |
2” or 3, 5”king – pin detachable
from below made by SAE standards 8 bolt type. |
| VOLUME |
Total Net Volume: 36.500 lt Six
Compartment |
| AXLES |
3 x 9000 kg carrying capacity Serin Drum Axle brand |
| DISTANCE BETWEEN AXLES |
1320 mm |
| BRAKE AND SUSPENSION SYSTEM |
Air Suspension, Disc Brake
System, ABS WABCO Brake System, Pneumatically drainage safety valve |
| LANDING GEARS |
Double Speed, 24000 kg carrying
capacity, JOST brand mechanical Landing Gears, |

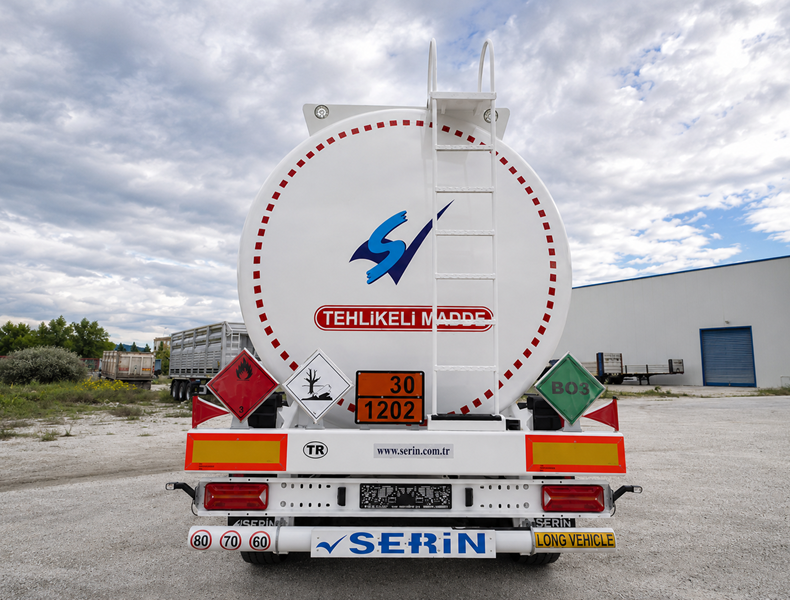

| REAR BUMPER |
Suitable 70/221 / AT-version of the rear bumper, |
| THE REAR OVERHANG |
Distance from the end of the tank on the bumper should be more
then 300mm |
| WHEEL CHOCK |
Carriers with 1 unit wheel chock |
| TIRES & WHEELS |
6 +1 PCS 385 / 65 R 22,5
Goodyear-Pirelli-Bridgestone |
| LOADING, UNLOADING SYSTEM |
Suitable for loading from top,
and bottom In the lock box on the right side of tanks 6 PCS Six pcs. 500mm
manhole cover to be suitable for loading from top and bottom. |
| OVERFILL POOL |
It is design for prevention of
spilling fuel all over the tank body and overfill fuel is disposed by two
drain hoses mounted on the rear side of the tanker body connected to the
disposal tank that have discharge valve. |
| WALKING PLATFORM(CAT WALK) |
The rough surface on the side
with all the length of the pool within antiskid walking paths, The ladder
should be located on the back Two side protective barrier |
| MUDGUARD |
1 pcs mudguards with plastic edges. |
| SPARE TIRE CARRIER |
Spare tire basket with one spare |
| BOX |
1 unit Plastic Tool Box, 1 unit
Discharging Box (Right side of the Tanker), 2 units each of 12 kg of fire
tube with holder |
| HOSES |
2 units 3” hoses with carrier |
| PAINT |
ALUMINIUM Material surface are
cleaned by grit metal and send how shot is blasted on the surfaces of the
metal. 2 Floor Epoxy primers are made and paint will be choose on demand of
the customer, |
| ELECTRICAL EQUIPMENT AND
LIGHTING |
There are amber-colored lights
in the side by 3 units,
Park at the rear lamps, Reflector triangles, Electrical system; Flame proof
electrical system 2 X 7-pin electrical socket. Stop lights with protective
grill |
| ACCESSORIES |
Hub key, Axles Bolt Nut key, Tool box keys. |
